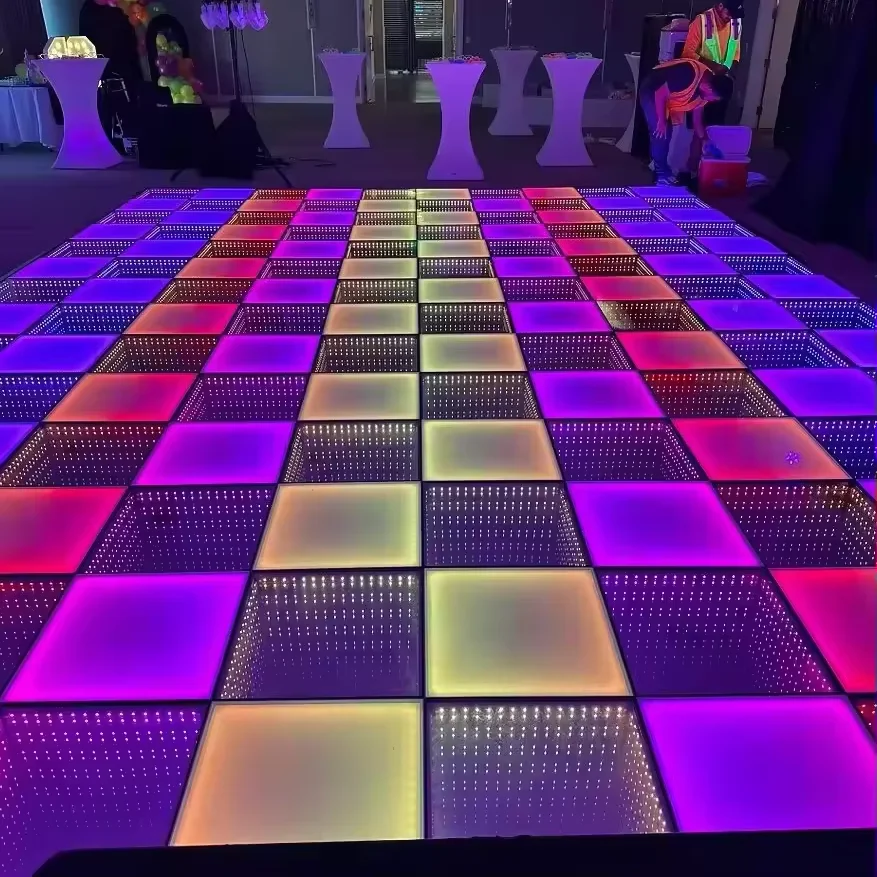

3D Abyss LED Dance Floor
The 3D Abyss Mirror LED Dance Floor: a magnetic-connection visual beast that installs in a snap, helping you create a dazzling party!
Request Product Details
Tell us your target use, quantity plan, and customization needs. Our team will send a tailored quotation and shipping suggestion.
Specifications
| Type | LED Dance Floor |
| Light Source | LED |
| Control Method | DMX512, Wireless |
| IP Rating | IP67 |
| Application | Wedding, DJ Entertainment, Events |
| Customization | OEM/ODM available |
Magnetic Charging Model
It features a built-in controller and battery, allowing for wireless operation. The unit can be charged while placed inside its flight case or via a charging ramp, and it supports simultaneous charging and use. It automatically cuts off power once fully charged; the charging time is approximately 2–3 hours, providing about 10 hours of continuous use. It is equipped with a 6000mAh battery and can be controlled via remote control or a mobile app.
Key Features
- 1.Wear Resistance: Made with 10mm tempered glass, it's very strong and scratch-resistant, even high heels won't damage it.
- 2.Waterproof Rating: IP67 (drinks and alcohol spills are not a problem). The power supply is equipped with a waterproof protective casing.
- 3. Extremely Strong Load-Bearing Capacity: Each panel can withstand approximately 600 to 700 kg of weight, suitable for car shows.
- 4. Lifespan: Over 10 years, >100,000 hours.
- 5. Multiple Control Methods (SD controller + remote control + sound control)
- 6.The SD card contains 96 modes, including 3D mirroring, RGB gradient changes, jumping effects, rotating effects, rendering effects, chasing effects, and automatic operation functions.
- 7.Four floor tiles are fixed on one panel, tightly connected and not easy to slide.
FAQ
1. Which sizes are the most popular?
Most of our customers are in the rental business, and they usually choose 20*20ft or 16*16ft.
This depends on your venue size or how many people you want to accommodate.
Do you have the venue size?
If you want to accommodate 50 people, we recommend 100 pieces; if you want to accommodate 100 people, we recommend 200 pieces.
2. How are they connected? What are the installation methods?
We have two connection methods:
Wired and magnetic.
Wired: Each floor tile needs to be wired, and then connected to the power supply and controller. One power supply can connect 15 tiles, and one controller can control 120 tiles.
Magnetic: Only one row needs to be connected to the power supply and controller; the other tiles are powered through magnets, requiring no wiring.
The wired version is more economical and suitable for fixed locations.
The magnetic version is easier to install and convenient to move, suitable for rental businesses.
3. Is it waterproof?
Our waterproof rating is IP67, so you don't have to worry about spills from drinks or other liquids. We can also install a waterproof casing on the power supply.
4. Is it durable? What is the thickness?
Our glass is 1cm thick, and each panel can bear a weight of 600-700kg. High heels are not a problem.
5. How long does the rechargeable version last on a full charge?
It takes 2-3 hours to fully charge, and a full charge lasts about 10 hours. The built-in battery is 6000 mAh.
6. What is the lifespan?
10 years, 100,000 hours
7. What is the power consumption?
Rated power: 20W
8. How many LED beads are there?
50cm: 60 beads. 60cm: 72 beads.
Most of our customers are in the rental business, and they usually choose 20*20ft or 16*16ft.
This depends on your venue size or how many people you want to accommodate.
Do you have the venue size?
If you want to accommodate 50 people, we recommend 100 pieces; if you want to accommodate 100 people, we recommend 200 pieces.
2. How are they connected? What are the installation methods?
We have two connection methods:
Wired and magnetic.
Wired: Each floor tile needs to be wired, and then connected to the power supply and controller. One power supply can connect 15 tiles, and one controller can control 120 tiles.
Magnetic: Only one row needs to be connected to the power supply and controller; the other tiles are powered through magnets, requiring no wiring.
The wired version is more economical and suitable for fixed locations.
The magnetic version is easier to install and convenient to move, suitable for rental businesses.
3. Is it waterproof?
Our waterproof rating is IP67, so you don't have to worry about spills from drinks or other liquids. We can also install a waterproof casing on the power supply.
4. Is it durable? What is the thickness?
Our glass is 1cm thick, and each panel can bear a weight of 600-700kg. High heels are not a problem.
5. How long does the rechargeable version last on a full charge?
It takes 2-3 hours to fully charge, and a full charge lasts about 10 hours. The built-in battery is 6000 mAh.
6. What is the lifespan?
10 years, 100,000 hours
7. What is the power consumption?
Rated power: 20W
8. How many LED beads are there?
50cm: 60 beads. 60cm: 72 beads.
